Switch the relays of a Raspberry Pi relay HAT from your browser, Node-RED or Home Assistant.

CI Release License: MIT Go Raspberry Pi

🇩🇪 Deutsche Kurzfassung

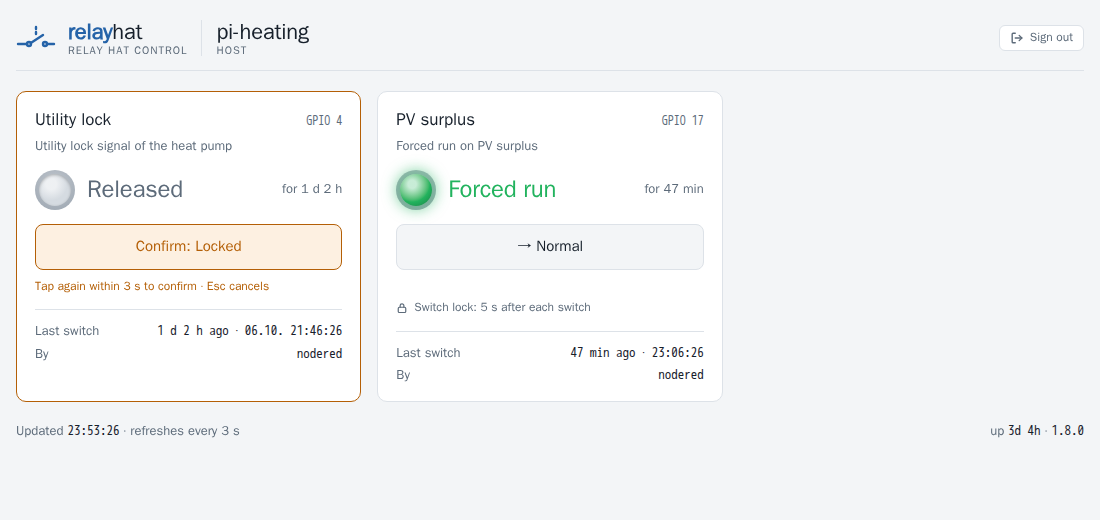

relayhat web page: two relays as cards with a pilot light, the utility lock waiting for the confirming second tap   The same page on a phone

Got a Pi with a relay HAT? The Quick start gets you from download to switching in the browser in about ten minutes.

A relay HAT turns a Raspberry Pi into a switch for things the Pi cannot drive itself: a heat pump’s utility lock or PV surplus input, a pump, a gate, a light. relayhat makes those relays usable from everywhere on your network:

No cloud, no database, no runtime: a single binary, configured with one YAML file.

Features

Quick start

1. Download the archive for your Pi from the latest release:

Archive Raspberry Pi model
linux_armv6 Pi 1 and Zero (1st gen); also runs on every newer Pi
linux_armv7 Pi 2 / 3 / 4 / 5 / Zero 2 W with a 32-bit OS
linux_arm64 Pi 3 / 4 / 5 / 400 / Zero 2 W with a 64-bit OS
VERSION=2.0.1 ARCH=armv6        # see the release page for the latest version
BASE=https://github.com/womat/relayhat/releases/download/v$VERSION
curl -LO $BASE/relayhat_${VERSION}_linux_$ARCH.tar.gz -LO $BASE/checksums.txt
sha256sum -c checksums.txt --ignore-missing
tar xzf relayhat_${VERSION}_linux_$ARCH.tar.gz

2. Install binary, example configuration and a certificate. Everything belongs to root except data/, where relayhat keeps the relay states; the service user relayhat may read etc/:

sudo groupadd -r -f relayhat
sudo useradd -r -s /usr/sbin/nologin -g relayhat relayhat
sudo usermod -aG gpio relayhat
sudo install -d -o root -g root -m 755 /opt/relayhat /opt/relayhat/bin
sudo install -d -o root -g relayhat -m 750 /opt/relayhat/etc
sudo install -d -o relayhat -g relayhat -m 750 /opt/relayhat/data

sudo install -o root -g root -m 755 relayhat /opt/relayhat/bin/
sudo install -o root -g relayhat -m 640 config/config.yaml /opt/relayhat/etc/
sudo openssl req -x509 -nodes -newkey rsa:2048 -days 825 \
  -keyout /opt/relayhat/etc/key.pem -out /opt/relayhat/etc/cert.pem -subj "/CN=$(hostname)"
sudo chown root:relayhat /opt/relayhat/etc/key.pem /opt/relayhat/etc/cert.pem
sudo chmod 640 /opt/relayhat/etc/key.pem

Why root: whoever can write config.yaml or the token file can add a token of their own, and whoever can write bin/relayhat can replace the program — and both switch your relays.

3. Configure /opt/relayhat/etc/config.yaml: set env: prod and one entry per relay — see Configuration and Hardware. Then create a token for each caller, e.g. the browser and Node-RED:

sudo /opt/relayhat/bin/relayhat token add browser
sudo /opt/relayhat/bin/relayhat token add nodered

Each prints its token once; keep it, e.g. in a password manager. See Tokens.

4. Start it as a service, with the unit from the archive, and open the firewall:

sudo install -m 644 contrib/relayhat.service /etc/systemd/system/
sudo systemctl daemon-reload
sudo systemctl enable --now relayhat
sudo ufw allow 8443/tcp          # if ufw is active
journalctl -u relayhat -n 20     # "Module started successfully"

The unit runs relayhat in a sandbox: no capabilities, a read-only system except data/, only the GPIO chip as a device. A logDestination file has to go to data/ as well.

5. Open https://<your-pi>:8443/, accept the self-signed certificate and enter the token.

Hardware

relayhat was written for the relay HATs of BC Robotics and runs on every Raspberry Pi with a 40-pin header. It drives one GPIO output per relay: high switches the relay on.

Board Relays GPIO (BCM) Header pins
Raspberry Pi Zero Relay HAT 2 4, 17 7, 11
Raspberry Pi 4 Channel Relay HAT 4 4, 17, 27, 22 7, 11, 13, 15

Each relay brings its common (COM), normally open (NO) and normally closed (NC) contact out to a screw terminal. Wire your load to COM and NO if it should run while the relay is on, to COM and NC if it should run while it is off — which is also what happens while relayhat is stopped or the Pi is without power.

Any other relay board with logic-level, active-high inputs works the same way: give each relay its GPIO in the configuration. Boards whose relays switch on when the input is pulled low would work inverted and are not supported.

[!WARNING] The relays can switch mains voltage. Wiring 230 V / 120 V is a job for a qualified electrician; keep it in a closed enclosure, away from the Pi’s low-voltage side. If in doubt, switch a contactor or an input of the device (such as a heat pump’s control input) instead of the load itself.

BC Robotics also has a getting-started tutorial for soldering the header and the terminal connections.

Web UI

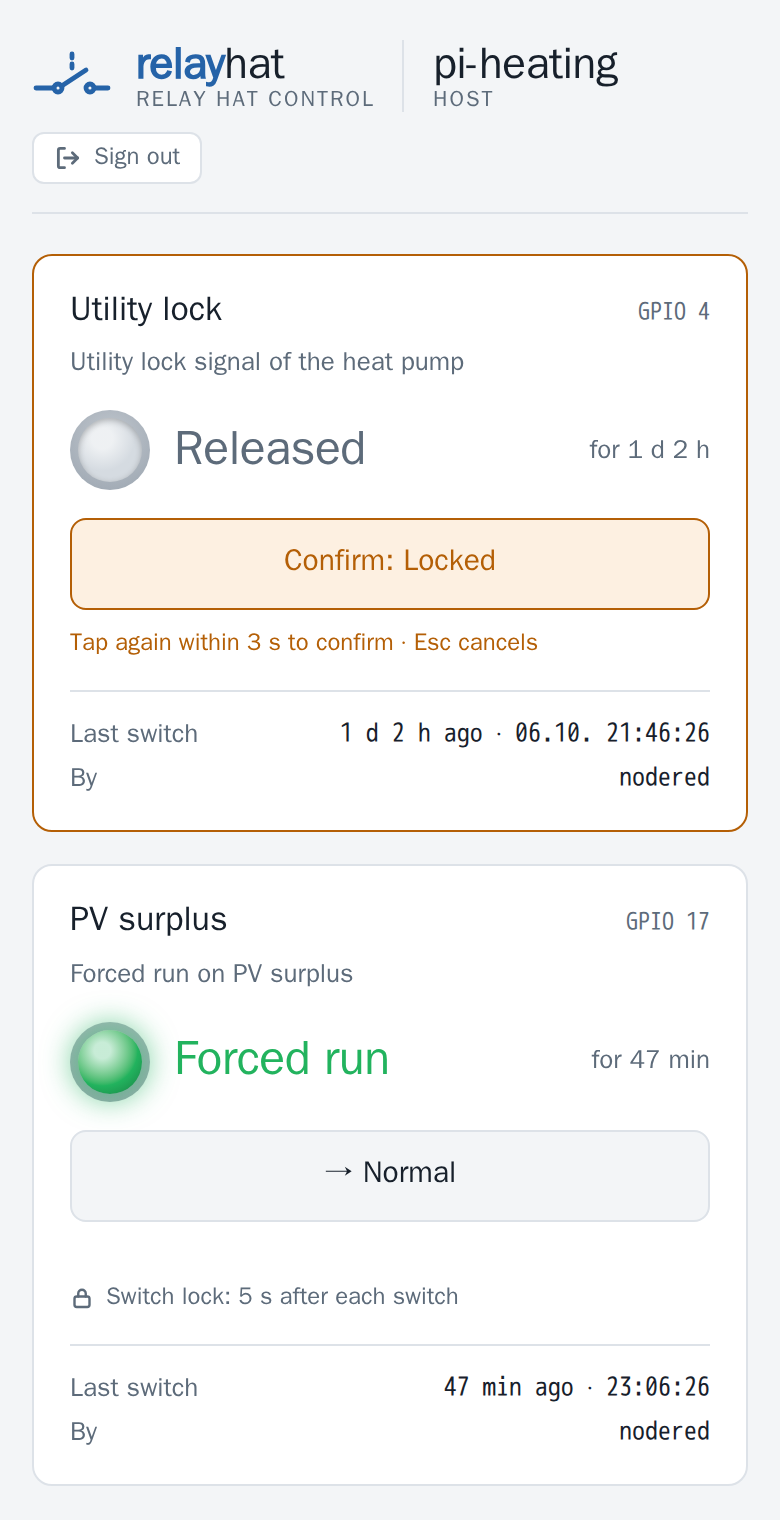

Open https://<pi>:<listenPort>/ in a browser. The page asks for a token once (relayhat token add browser), keeps it in the browser’s local storage and sends it as a bearer token; Sign out forgets it, and a rejected token brings the prompt back.

The page itself is public, as it holds no data; everything it shows and switches needs a token. Limit who can reach it with allowedIPs, e.g. to your home network.

Node-RED and Home Assistant

Switching is a PATCH to /relays/{name}/on or /off with a bearer token; the answer is the relay’s new state. Give every caller a token of its own, so lastChange.user says who switched.

Node-RED: an http request node with method PATCH, URL https://<your-pi>:8443/relays/relay1/ (send on or off as msg.payload), authentication bearer authentication with its token (relayhat token add nodered; Node-RED keeps it in its encrypted credentials, not in the flow) and a TLS configuration without Verify server certificate for the self-signed certificate.

Home Assistant: a rest_command per state, used in automations or scripts:

rest_command:
  relay1_on:
    url: https://<your-pi>:8443/relays/relay1/on
    method: patch
    headers:
      Authorization: !secret relayhat_bearer   # "Bearer <token>"
    verify_ssl: false
  relay1_off:
    url: https://<your-pi>:8443/relays/relay1/off
    method: patch
    headers:
      Authorization: !secret relayhat_bearer   # "Bearer <token>"
    verify_ssl: false

Repeating the current state is harmless: it is answered with 200, does not count as a switch and is allowed during the switch lock — a flow may send its state on every run.

REST API

Method Path Auth Description
GET / – Web page
GET /version – App name and version
GET /health Token Runtime health metrics
GET /relays Token List all relays
GET /relays/{name} Token Get relay state
PATCH /relays/{name}/{state} Token Set relay (on / off)

Authentication with a bearer token from relayhat token add: Authorization: Bearer <token>. HTTPS is TLS 1.3 only. Errors are returned as {"error": "..."} with the HTTP status (401 without a valid token, 404, 400 for an invalid state, 429 with a Retry-After header while the relay’s switch lock runs); a 500 carries only internal server error, the cause is in the log. Every switch is logged with relay, GPIO, old and new state, the token name and the client address.

A relay is returned as:

{
  "name": "relay1",
  "state": "off",
  "description": "Utility lock signal of the heat pump",
  "gpio": 4,
  "display": { "label": "Heat pump", "color": "red", "onText": "Locked", "offText": "Released" },
  "lastChange": {
    "time": "2026-10-07T14:02:13+02:00",
    "ageSeconds": 2820.4,
    "source": "api",
    "client": "192.168.1.20",
    "user": "nodered"
  },
  "lock": { "intervalSeconds": 5, "remainingSeconds": 0 }
}

display comes from the configuration and is meant for the web page. lastChange is the last switch: source is api, or start when relayhat switched the relay to its start state; client is the address and user the name of the token of the caller. lastChange is kept in the stateFile and survives a restart. lock is present with minSwitchInterval only; remainingSeconds is how long the relay still refuses to switch. A request for the state the relay is already in succeeds without switching, so it neither changes lastChange nor starts the lock.

# Get all relays
curl -k https://<your-pi>:8443/relays -H "Authorization: Bearer $TOKEN"

# Get a single relay
curl -k https://<your-pi>:8443/relays/relay1 -H "Authorization: Bearer $TOKEN"

# Turn a relay on / off
curl -k -X PATCH https://<your-pi>:8443/relays/relay1/on -H "Authorization: Bearer $TOKEN"
curl -k -X PATCH https://<your-pi>:8443/relays/relay1/off -H "Authorization: Bearer $TOKEN"

Configuration

Default location: /opt/relayhat/etc/config.yaml

# =============================================================================
# relayhat configuration
#
# ${VAR} is replaced with the environment variable VAR (only this form, a bare
# "$" stays as it is), e.g. a password: ${RELAYHAT_PASSWORD}.
# Unknown keys are an error, so a typo cannot silently fall back to a default.
# =============================================================================

# logLevel defines the minimum log level.
# Messages with at least this level are logged.
# Allowed values: debug | info | warn | error
logLevel: info

# logDestination defines where logs are written to.
# Supported values: stdout | stderr | null | /path/to/logfile
logDestination: stdout

# environment: dev | prod
# dev falls back to the embedded self-signed certificate when certFile is
# missing; prod refuses to start without certFile.
env: dev

# stateFile keeps the state of every relay and its last switch (when, by which
# client), for startState: last and the "Last switch" in the web page. It is
# written after every switch and once on start; the directory must exist and be
# writable. Set it to "" to keep nothing (startState: last then needs a file).
stateFile: /opt/relayhat/data/state.yaml

# =============================================================================
# Webserver configuration (HTTPS)
# =============================================================================
webserver:
  # Host address the HTTPS server listens on (0.0.0.0 = all interfaces)
  listenHost: 0.0.0.0

  # Port the HTTPS server listens on
  listenPort: 8443

  # Bearer tokens accepted on the protected endpoints, one "<name> <sha256>" per line.
  # Manage it with "relayhat token add|remove|list"; a relative path is relative to this file.
  # The file holds hashes only, but whoever can write it can add a token: owner root.
  tokenFile: /opt/relayhat/etc/token-hashes

  # TLS private key file
  keyFile: /opt/relayhat/etc/key.pem

  # TLS certificate file
  certFile: /opt/relayhat/etc/cert.pem

  # Blocked IP addresses or networks (empty = none blocked)
  # Examples: 192.168.0.1, 192.168.0.0/16, 10.0.0.0/8
  blockedIPs: []
  #  - 192.168.0.1
  #  - 192.168.0.0/16

  # Allowed IP addresses or networks (empty = all allowed)
  # Note: ::1 is the IPv6 loopback address
  # Examples: 127.0.0.1, ::1, 192.168.0.0/16
  allowedIPs: []
  #  - 127.0.0.1
  #  - ::1
  #  - 192.168.0.0/16

# =============================================================================
# relay configuration
#
# name: relay name used in the API (/relays/{name})
# gpio: BCM number 2..27, each gpio at most once
# startState: state after the process starts (boot, crash, systemctl restart):
#   off  (default) switched off
#   on   switched on
#   last the state before, from stateFile; off if it has none (first start,
#        missing or damaged file)
# A SIGHUP reload keeps the state of every relay whose gpio stays configured;
# startState applies only to relays that are added by the reload.
# A stop (SIGTERM/SIGINT) switches all relays off.
# minSwitchInterval: after a switch the relay refuses to be switched again for
#   this long, by any client including the web page (HTTP 429), e.g. 5s or 10m;
#   0s or missing disables it. The start counts as a switch, start states are
#   never refused, and a request for the state the relay is already in is no
#   switch.
#
# Web page only (optional, the API paths stay /relays/{name}):
#   label:   name on the card, default the relay name
#   color:   pilot light when on: green (default) | red | amber
#   onText:  word for the on state, default ON
#   offText: word for the off state, default OFF
#
# gpio 4 and 17: Pi Zero Relay HAT and 4-Channel Relay HAT;
# gpio 22 and 27: 4-Channel Relay HAT only.
# =============================================================================
relay:
  relay1:
    label: "Heat pump"
    description: "Utility lock signal of the heat pump"
    gpio: 4
    startState: off
    minSwitchInterval: 5s
    color: red
    onText: "Locked"
    offText: "Released"
  relay2:
    description: "gpio 17, Pi Zero Relay HAT and 4-Channel Relay HAT"
    gpio: 17
  relay3:
    description: "gpio 22, 4-Channel Relay HAT only"
    gpio: 22
  relay4:
    description: "gpio 27, 4-Channel Relay HAT only"
    gpio: 27

Tokens

Every caller gets its own token: a browser, Node-RED, a script. relayhat keeps only the SHA-256 hash of each, in the file named by webserver.tokenFile, one line per caller:

# /opt/relayhat/etc/token-hashes
browser  3f2a…c91e
nodered  8b04…d7a2

The token itself exists only with the caller. Whoever reads the file cannot call relayhat with it, so it needs no more protection than the config — but whoever can write it can add a token of their own: keep it root:relayhat 0640, like config.yaml.

Command Does
sudo relayhat token add <name> Writes the hash, then prints the token once, on stdout alone
sudo relayhat token add <name> -dry-run Prints token and line, writes nothing
sudo relayhat token remove <name> Deletes the line
sudo relayhat token list Prints the names, never a hash
sudo systemctl reload relayhat Applies a change; the relays keep their state

-config works as for the service. A new token file gets 0640 and the owner and group of config.yaml. add refuses a name that is taken and prints no token when it cannot write the file, so a token that is shown but stored nowhere cannot happen. A name is 1–64 letters, digits, ., _ or -.

Rotating without a gap: relayhat token add nodered-2, move the caller to the new token, relayhat token remove nodered, reload. A lost token is not recovered but replaced the same way.

In the log: at start and after every reload relayhat names the tokens it accepts (Bearer tokens loaded … names=[browser nodered]). Every switch is logged with user; the first request of each caller from each address is logged at info (user=browser request.client=… firstAccess=true), every rejected one as a warning with its address; the polls in between at debug.

Security

Report vulnerabilities privately, see SECURITY.md.

Reload, restart and stop

Send SIGHUP to reload the configuration without restarting the process:

sudo systemctl reload relayhat
# or
kill -HUP $(pidof relayhat)

A reload also rereads the token file. The config file is validated first; if it is broken, the reload is refused, logged, and the service keeps running unchanged. Relays whose GPIO is still configured keep their state across the reload (also when they are renamed) — the GPIO line is handed over, not reopened, so the relay does not flicker. Removed relays are switched off, new ones start in their startState. The last switch of a relay is kept as well.

Some problems only show when the service starts with the new settings, e.g. a port or GPIO line in use. Then Start with the new configuration failed, continuing with the previous one is logged and the service starts again with the settings it ran with before; the relays are handed over to it and keep their state. A request that arrives while a reload is in progress gets HTTP 503.

Event Relay state afterwards
SIGHUP reload unchanged
process start (boot, crash, systemctl restart) startState: off, on or last
stop (SIGTERM/SIGINT, systemctl stop) off

A config that does not load or validate at start ends relayhat with exit code 78; the unit does not restart it then (RestartPreventExitStatus=78), and systemctl status relayhat shows why.

Command-line Flags

Flag Default Description
--config /opt/relayhat/etc/config.yaml Path to the configuration file
--debug false Enable debug logging to stdout (overrides config)
--version false Print the application version and exit
--about false Print application details and exit
--help false Print this help message and exit

relayhat token add|remove|list manages the bearer tokens, see Tokens.

The config file path can also be set via the environment variable CONFIG_FILE; --config wins over it.

TLS Certificate

relayhat serves HTTPS only. With env: prod it needs certFile and keyFile; the Quick start creates a self-signed pair valid for 825 days, the maximum browsers accept. With env: dev it falls back to a certificate embedded in the binary when certFile does not exist — convenient for a first try, but that key ships in every release, so never use it on a reachable device.

Backup & Restore

# Backup
sudo tar czf /tmp/relayhat-backup.tar.gz /opt/relayhat

# Restore
sudo tar xzf /tmp/relayhat-backup.tar.gz -C /     # as root, tar keeps owners and modes
sudo systemctl restart relayhat

Releases

Every release on the releases page carries archives for all Raspberry Pi architectures with the binary, config/config.yaml, contrib/relayhat.service, README.md and LICENSE, plus a checksums.txt and a changelog. Versions follow semantic versioning; a breaking change of the API or the configuration raises the major version.

relayhat --version reports the release a binary was built from. A local build reports something like 2.0.1-3-g0c13781-dirty instead, which is how the two are told apart on a device.

Building from source needs Go and make: clone the repository and run make help for the targets; make test (the tests, Linux only) and make lint (go vet, golangci-lint, govulncheck) run what CI checks. CLAUDE.md describes the architecture, the tests and the release process.

Upgrading to 2.0.0

The API key is replaced by bearer tokens, lastChange.host by lastChange.user, HTTPS is TLS 1.3 only, and the unit lives in the repository:

  1. Make /opt/relayhat root-owned except data/, as in the Quick start.
  2. Put the new binary next to the old one as bin/relayhat.new, and a copy of the config as etc/config.yaml.new with apiKey: … replaced by tokenFile: token-hashes. The running 1.x is not touched by either.
  3. Create the tokens with the new binary, one per caller: sudo /opt/relayhat/bin/relayhat.new token add nodered -config /opt/relayhat/etc/config.yaml.new. This only writes the token file; it opens no GPIO.
  4. Move relayhat.new and config.yaml.new into place, install contrib/relayhat.service, then sudo systemctl daemon-reload && sudo systemctl restart relayhat. Like every restart, this switches the relays off for a moment; with startState: last they come back. A config that still has apiKey is refused with a message that says so.
  5. Every caller sends Authorization: Bearer <token>; X-API-Key is no longer accepted. In Node-RED, set the http request nodes to bearer authentication. The web page asks for the token once.
  6. A client that told its own switches by lastChange.host uses lastChange.user now; lastChange.client stays. The state file of 1.x is read, its host ignored.
  7. A client limited to TLS 1.2 can no longer connect.

License

relayhat is released under the MIT License - see LICENSE for the full text.

Third-party licenses

The source tree contains no third-party code, but a compiled binary statically links the modules below. Their terms apply to anyone distributing that binary, not to the sources here.

Module License
github.com/womat/golib/v2 MIT
github.com/womat/gpio MIT
github.com/warthog618/go-gpiocdev MIT
gopkg.in/yaml.v3 MIT and Apache-2.0
golang.org/x/sys BSD-3-Clause
Swagger UI build only (-tags swagger):
github.com/swaggo/swag, http-swagger, files MIT
github.com/go-openapi/*, go.yaml.in/yaml/v3 Apache-2.0
github.com/KyleBanks/depth MIT
golang.org/x/net, mod, sync, tools BSD-3-Clause

All of these are permissive; none obliges relayhat to change its license.

This site is open source. Improve this page.
